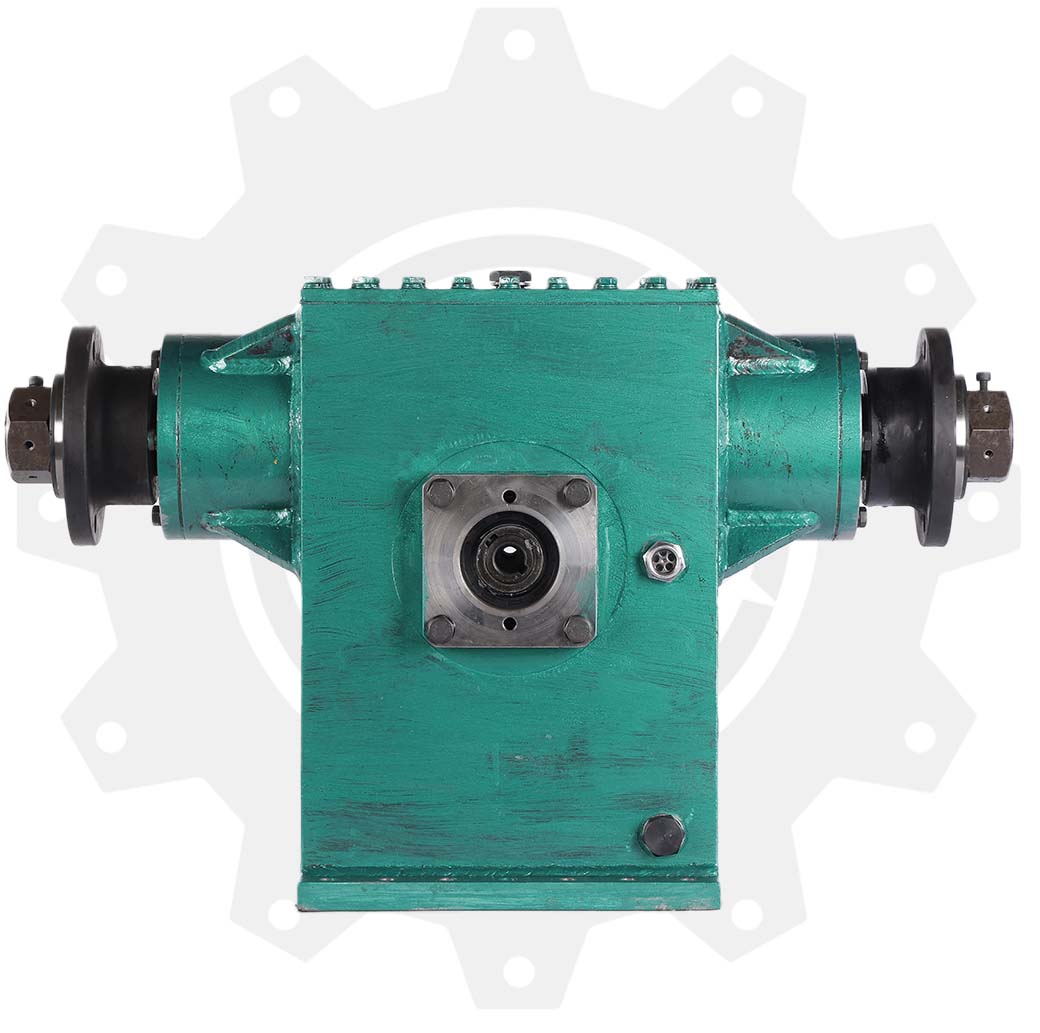

SMS XL MUD- RHG101

The SMS XL DTH Gearbox is a versatile Rotary head gearbox known for its ability to handle drilling methods such as DTH and Rotary drilling. With a drilling capacity of 400 meters depth @ 200 mm diameter. It is one of SMS Gears trend setter, With a new built in water swivel attachment with standing 200 Bar pressure. SMS XL Mud gearbox is a cost efficient solution for Rotary MUD Drilling.

• Product Details
• Technical Specification

Application	WaterWell Drilling
Hydraulic Motor	Danfoss: OMT, OMV Series, (Customer spec)
Formation	Soft/ Hard
Mounting	H-Plate Horizontal Mounting (Tractor, Truck)
Attachment	Inbuilt Water Swivel Attachment- Inlet from top, Cushioning Sub
Lubrication system	Plunger type oil circulation
Lubrication oil	ISO VG-220 (13 litres)
Gearbox Weight	250 Kg's

Ratio	3:1 (Customer Spec)
Max Flow	125- 250 ltr/min
Shaf Dia	110mm
Flushing Hole Dia	40-42mm
Threading	2 7/8" IF, 3 1/2" API Reg, (Customer Spec)
Max Inlet Swivel Pressure	8000-1000 PSI
