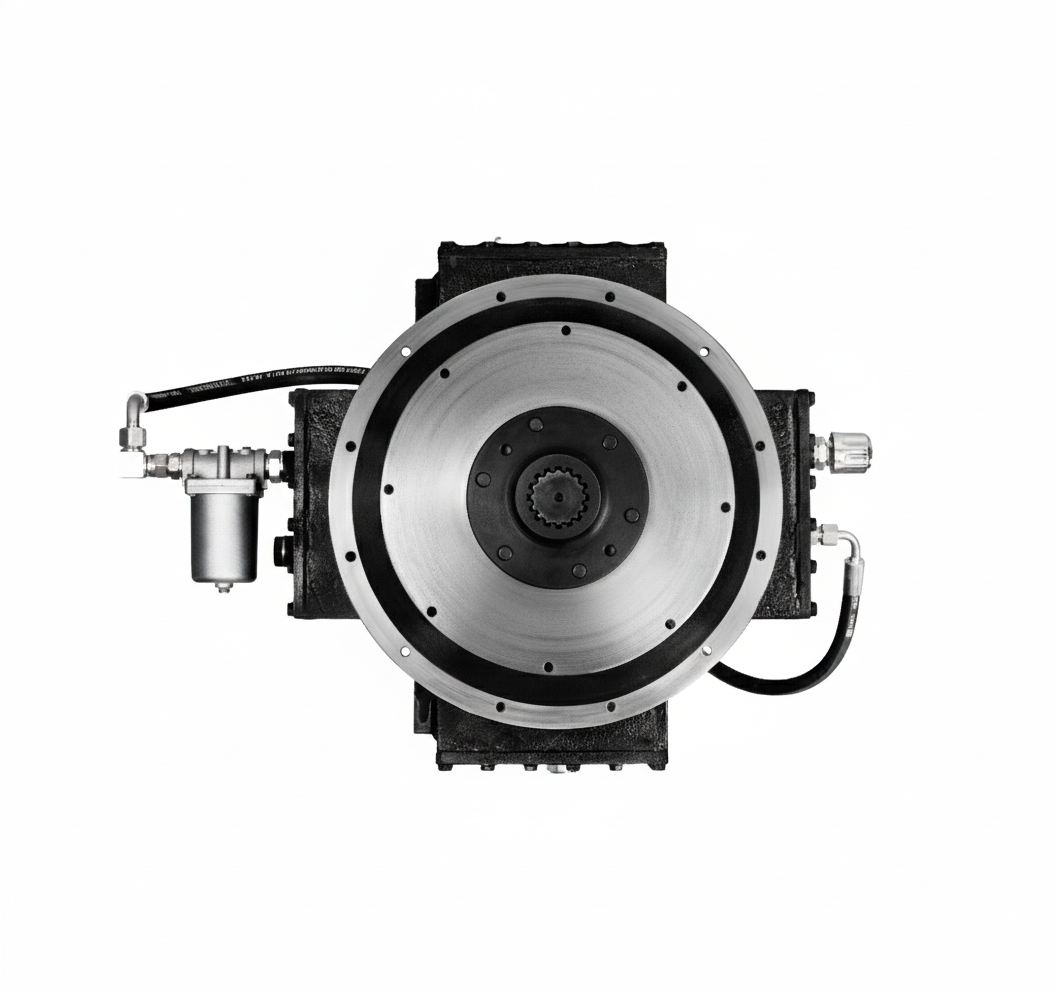

SMS DE500- Engine Pump Drive Gearbox

The SMS-DE500 isn't just a component; it’s the backbone of high-performance drilling rigs. Here is why it remains the top choice across the Indian subcontinent. A proven track record of >30,000 working hours in harsh drilling environments. Seamlessly transfers power from truck engines ranging from 100 HP to 500 HP. Capable of driving 2 to 4 hydraulic pumps simultaneously. Supports pumps ranging from 6 GPM to 65 GPM, offering flexibility for various hydraulic requirements. Designed to mount on all standard engine bell housings and flywheel configurations. Engineered for "easy-to-service" access, minimizing downtime during critical operations.

• Product Details
• Technical Specification

Application	Water well Marine Core Drilling Street Cleaning Truck Shunting Locomotive Water Jetting Truck Vacuum Truck Silage Cutter
Max Truck Power	180-500 HP
Max Number of Pumps	2-4 Pumps
Pump Capacity	6-65 GPM
Pump position	Front 4
Sense of Rotation	Opposite Engine Shaft
Gearbox Housing	MS Annealed, Graded CI (In House)
Center Bearing	Full Steel Casted 4 Bearing Double Bearing Housing Driveline- Heavy Duty
Warranty	3 Year warranty, 10 Year Spare Backup

Bell Housing Type	SAE- 00, 0, 1/2, 1, 2, 3, 4, 5, 6
Flywheel Number	8, 10, 14, 18, 21, 11-1/2, Delco 17.75, Delco 15.50, Delco 12.75,
Ratio	1:1, 1.5:1
Max Input RPM	3000 Rpm
Max Input Torque	5000 Nm
Max Pressure to pump	upto 3000 PSI
Gearbox Weight	200 Kg's without pump
Gear Oil	ISO VG-150
