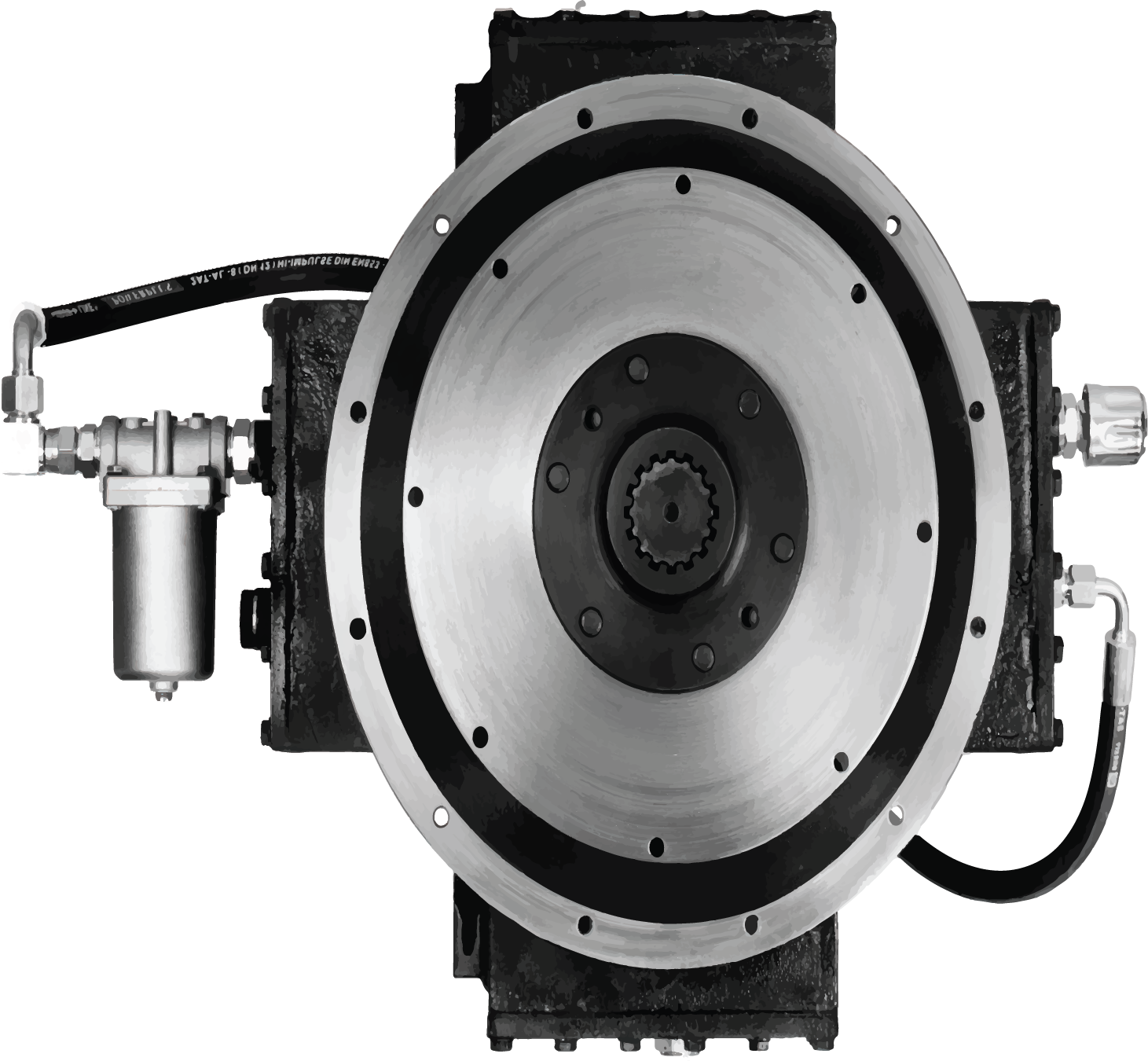

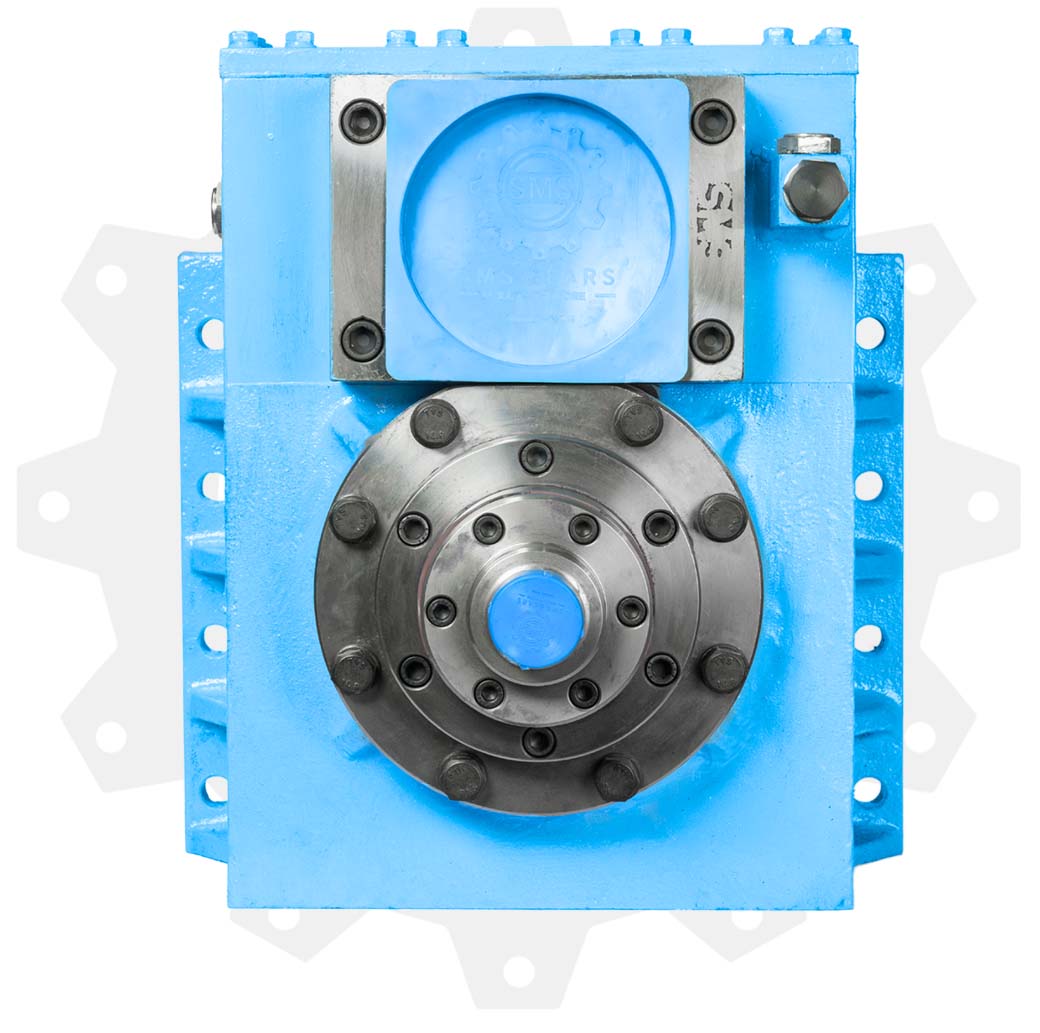

SMS DEO-105 Direct Engine Pump Drive

Our SMS DEO-105 Direct Engine mount pump drive Gearbox is a WCB Steel casting body and cost efficient gearbox for core drilling and commercial industry, with Impeccable efficiency in power output, With breaking a record of >20000 hours of working. SMS DEO-105 Split shaft PTO for fitment in the drive shaft between the gear box & the rear axle in vehicles of up to about 500 BHP. With easy to service. SMS PTO-105 can drive upto 4 hydraulic pump units ranging from 6 Gpm to 65 Gpm Vane, Piston Gear pumps. withstanding capacity upto 500Hp Marine Engine.

• Product Details
• Technical Specification

Apllication	Core Drilling Street Cleaning Truck Shunting Locomotive Water Jetting Truck Vacuum Truck Silage Cutter
Gearbox Connection	Direct Engine mount
Sense of Rotation	Opposite of Engine Shaft
Pump Driving Method	Direct Engine through Direct Engine Power
Pump Ports	2-4 Pumps
Weight	180 Kg's

Ratio	1:1, 1.5:1 (Customisable)
Housing Type	SAE 1 , SAE 2, SAE 3, SAE 4, SAE 5, SAE 6
Flywheel No	21, 18, 14, 11.5, 10, 8, 7.5, 6.5, Delco Series
Max Input Torque	3000 Nm (Customisable for Higher Torque)
Max Input speed	3000 Rpm
Required oil	ISO VG 150, 8 Ltr
